TinyBee
3-Axis Accelerometer modules
KXPS5-3157 3g Tri-Axis XYZ Accelerometer module
features:
Analog mode: Direct X-Y-Z analog outputs to any microcontroller's ADC
Digital mode: Digital communication to any
microcontroller via SPI or I2C
 |
|

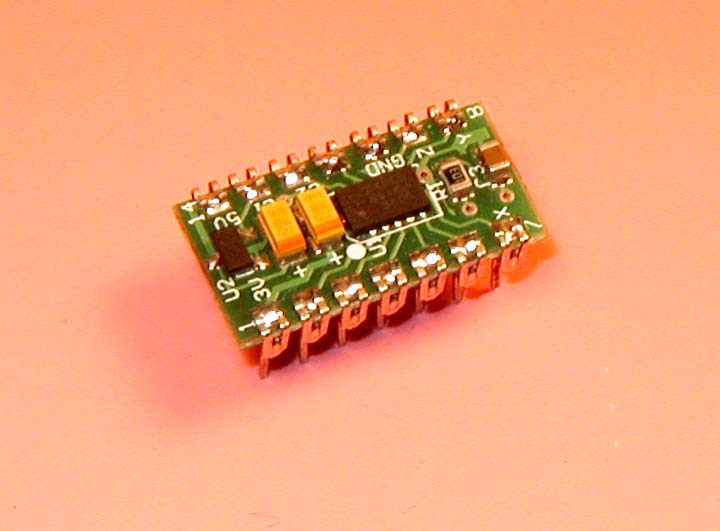

TinyBee-2:
Supports both analog and digital interfaces.
It's primarily used in analog interface with DragonflyBot Board, but can be used for any other microcontrollers.
Features:
14 pin DIP module with flat leads works like a regular IC chip.
On-module 3.3V regulator provides a stable operating voltage
Plug N' Play for DragonflyBot Board
Small size, 0.42" X 0.78"
|
 |
|
TinyBee-3:
Supports analog interface only.
It's primarily used in analog interface with MiniDragon and Dragon12 Plus
boards, but can be used for any other microcontrollers.
On-module 3.3V regulator.
Power-on LED indicator.

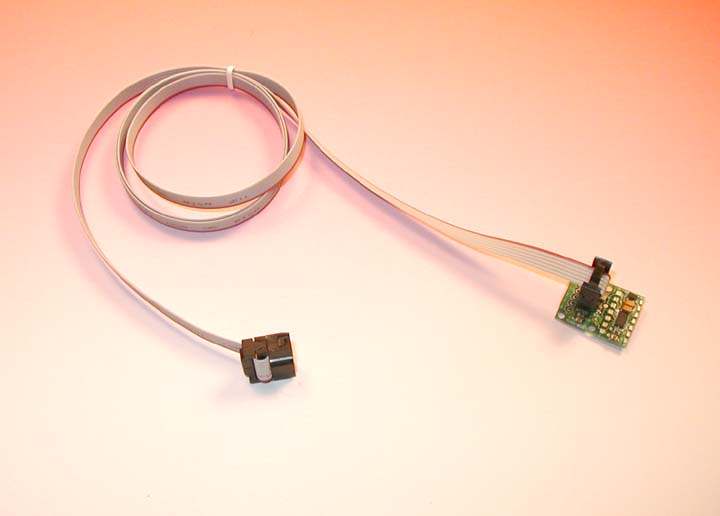

3 foot ribbon cable assembly included.
Plug N' Play for MiniDragon+, or MiniDragon Plus2 or Dragon12 Plus board.
Small size, 0.78" X 1.0"
|
 |

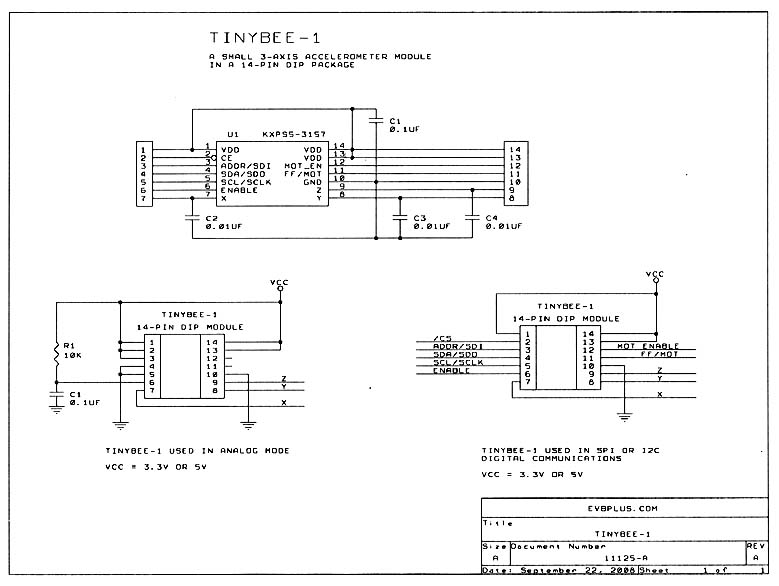

TinyBee-1 Schematics and application
circuits
|
 |

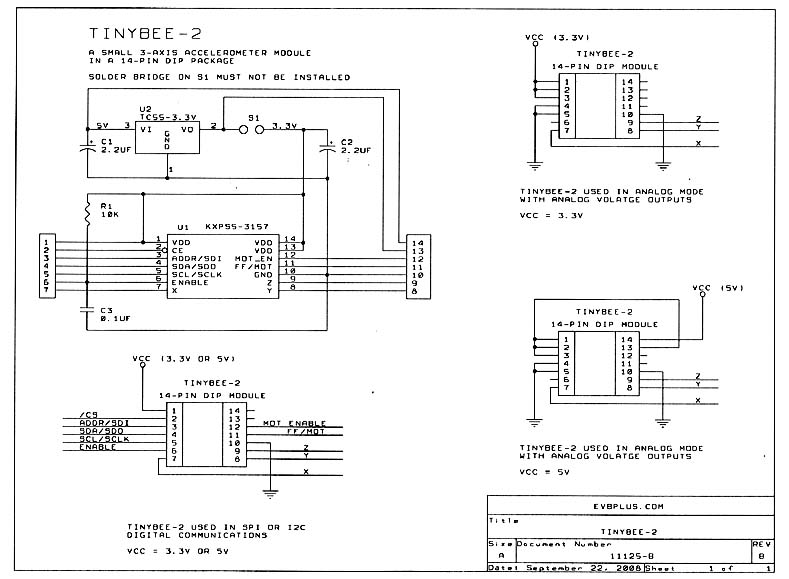

TinyBee-2 Schematics and application
circuits
|
 |

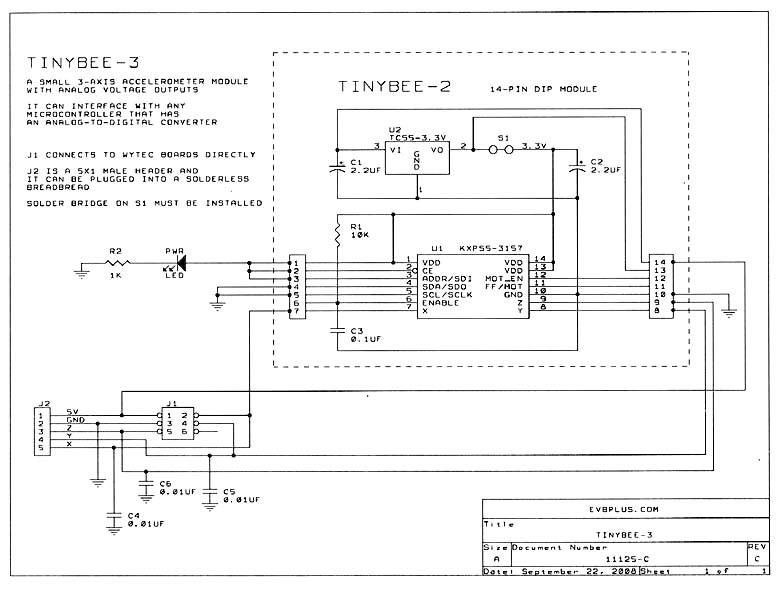

TinyBee-3 Schematics and application
circuits |
Product Code
|
Price (USD)
|
Description
|
|
|
Compact
3-Axis accelerometer module for user applications
|
TinyBee-2
|
$18
|
For DragonflyBot Board or any other microcontrollers
|
TinyBee-3
|
$20 |
For Dragon12 Plus, MiniDragon+ boards
|
See how the TinyBee-2 is used on the BBU
board:
http://www.evbplus.com/c32_modules/bbu_hc12_68hc12_9s12_hcs12.html
Datasheet and application notes from manufacturer:
http://www.kionix.com/Product%20Sheets/KXPS5%20Series.pdf
http://www.kionix.com/Product-Specs/KXPS5-3157%20Specifications%20Rev%201.pdf
http://www.kionix.com/sensors/application-notes.html
